£69.58 inc. VAT (£57.98 exc. VAT)
This bellow is approved by the UK Water Regulations Advisory Scheme (WRAS) for use with potable/drinking water.
FlexEJ designs and manufactures in the UK.
If you need different sizes, materials or something designed to your exact requirements then please get in contact and we will be happy to help.
26 in stock

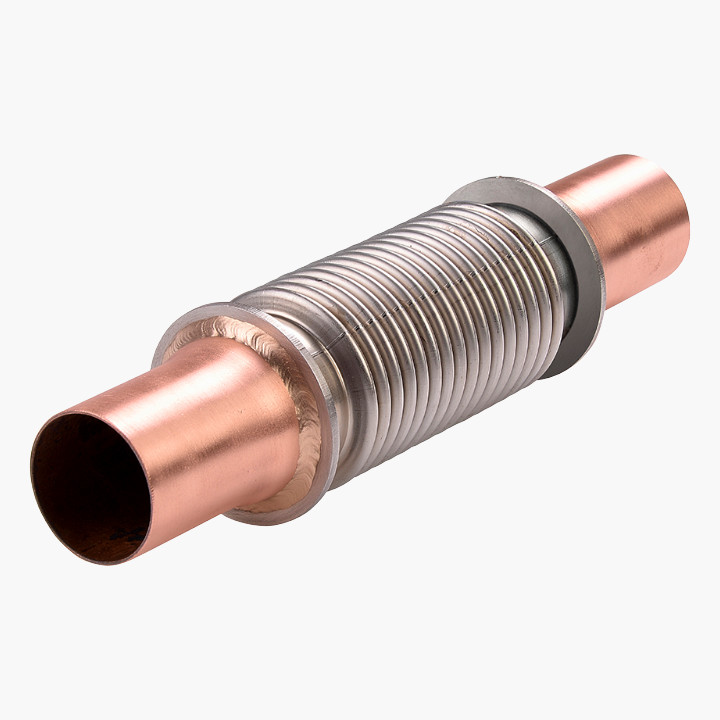

DN40 FlexEJ 42 mm copper Pipe Expansion Bellows with 316 stainless steel bellows – WRAS approved – for axial pipe expansion. High quality bellows calculated to EJMA. Approved for Potable / Drinking water, fully welded construction. Manufactured in our factory in the UK.
| Weight | 0.5 kg |
|---|---|
| Dimensions | 25 × 5.5 × 5.5 cm |
| Pipe Size | DN40 (1½″) |
| Copper Pipe Size | 42 mm |
| Application | Axial pipe movement in HVAC water applications – LTHW, heating, drinking/potable water |
| Bellows Material | 316 Stainless |
| Bellows Description | 316 stainless steel |
| Not Suitable For | Steam |
| PE(S)R (PED) | SEP, not marked, use with Group 2 liquid media only |
| Pressure Rating | 6 barg @ 90 °C |
| Vacuum Rating | FV |
| PN Rating | PN6 |
| Installation Length | 250 mm |
| Axial Movement | +0/-25 mm |
| Tie Rods | No |
| Connection Type | Copper Pipe |
| Connection | 42 mm Copper Pipe EN1057 Table X |
| Conformance | WRAS, EJMA |
| Shipping | Standard (24hrs) |
| Media | Water (Drinking), Water (HVAC Chilled), Water (HVAC HT Heating), Water (HVAC LT Heating) |
