Elaflex WhiteBand ERV-W Rubber Bellows
The Elaflex WhiteBand ERV-W rubber bellows features an NBR light grey, seamless, abrasion resistant liner with PA textile cord reinforcement and Chloroprene (CR) cover.
Untied
Tied Outer
Tied Outer
Tied Angular
Elaflex WhiteBand ERV-W Rubber Bellows are suitable for foodstuffs, also food-grade oils and fats. Not approved for drinking water. The WhiteBand ERV-W is available from DN25 to DN600 with a wide choice of configuration, flange and restraint options:
PRODUCT GUIDES
ELAFLEX RUBBER BELLOWS
WHAT IS AN ELAFLEX WHITEBAND ERV-W RUBBER BELLOWS?
FOR FOOD APPLICATIONS..
Materials
NBR light grey, swivel flanges as standard in zinc plated carbon steel.
Application
Food stuffs, oils and fats, not suitable for drinking water.
Rating
PN16 to DN400, PN10 to DN600, -20°C up to +90°C, temporarily up to +100°C. Electrically non conductive.
APPROVALS
DNV.
ELAFLEX WHITEBAND ERV-W RUBBER BELLOWS
| SIZE | LENGTH | PRESSURE RATING | MOVEMENT | IN SHOP |
|---|---|---|---|---|
| DN025-1″ | 130mm | 16 Barg @ 50 ºC to 10 Barg @ 100 ºC | Axial +20/-30 mm, Lateral +/- 30 mm, Angular +/- 30º |  |
| DN032-1¼” | 130mm | 16 Barg @ 50 ºC to 10 Barg @ 100 ºC | Axial +20/-30 mm, Lateral +/- 30 mm, Angular +/- 30º |  |
| DN040-1½” | 130mm | 16 Barg @ 50 ºC to 10 Barg @ 100 ºC | Axial +20/-30 mm, Lateral +/- 30 mm, Angular +/- 30º |  |
| DN050-2″ | 130mm | 16 Barg @ 50 ºC to 10 Barg @ 100 ºC | Axial +20/-30 mm, Lateral +/- 30 mm, Angular +/- 30º |  |
| DN065-2½” | 130mm | 16 Barg @ 50 ºC to 10 Barg @ 100 ºC | Axial +20/-30 mm, Lateral +/- 30 mm, Angular +/- 30º |  |
| DN080-3″ | 130mm | 16 Barg @ 50 ºC to 10 Barg @ 100 ºC | Axial +20/-30 mm, Lateral +/- 30 mm, Angular +/- 30º |  |
| DN100-4″ | 130mm | 16 Barg @ 50 ºC to 10 Barg @ 100 ºC | Axial +20/-30 mm, Lateral +/- 30 mm, Angular +/- 20º |  |
| DN125-5″ | 130mm | 16 Barg @ 50 ºC to 10 Barg @ 100 ºC | Axial +20/-30 mm, Lateral +/- 30 mm, Angular +/- 20º |  |
| DN150-6″ | 130mm | 16 Barg @ 50 ºC to 10 Barg @ 100 ºC | Axial +20/-30 mm, Lateral +/- 30 mm, Angular +/- 20º |  |
| DN200-8″ | 130mm | 16 Barg @ 50 ºC to 10 Barg @ 100 ºC | Axial +30/-25 mm, Lateral +/- 30 mm, Angular +/- 10º |  |
| DN250-10″ | 130mm | 16 Barg @ 50 ºC to 10 Barg @ 100 ºC | Axial +30/-10 mm, Lateral +/- 15 mm, Angular +/- 5º |  |
| DN300-12″ | 130mm | 16 Barg @ 50 ºC to 10 Barg @ 100 ºC | Axial +30/-10 mm, Lateral +/- 15 mm, Angular +/- 5º |  |
| DN350-14″ | 200mm | 16 Barg @ 50 ºC to 10 Barg @ 100 ºC | Axial +35/-40 mm, Lateral +/- 30 mm, Angular +/- 8º |  |
| DN400-16″ | 200mm | 16 Barg @ 50 ºC to 10 Barg @ 100 ºC | Axial +35/-40 mm, Lateral +/- 30 mm, Angular +/- 8º |  |
| DN450-18″ | 200mm | 10 Barg @ 50 ºC to 6 Barg @ 100 ºC | Axial +35/-40 mm, Lateral +/- 30 mm, Angular +/- 8º |  |
| DN450-18″ | 250mm | 10 Barg @ 50 ºC to 6 Barg @ 100 ºC | Axial +35/-45 mm, Lateral +/- 35 mm, Angular +/- 10º |  |
| DN500-20″ | 200mm | 10 Barg @ 50 ºC to 6 Barg @ 100 ºC | Axial +35/-40 mm, Lateral +/- 30 mm, Angular +/- 8º |  |
| DN600-24″ | 200mm | 10 Barg @ 50 ºC to 6 Barg @ 100 ºC | Axial +35/-40 mm, Lateral +/- 30 mm, Angular +/- 8º |
How to select a WhiteBand ERV-W Rubber Bellow
Temperature is the most critical as it directly influences the choice of rubber – but also the actual pressure capability of the bellows. The stated maximum rated pressure is maintained up to around 50ºC for most rubber bellows, for higher temperatures check the data in the Range tab.
Elaflex WhiteBand ERV-W Restraint options
FlexEJ has the following tie rod restraint options in stock for the WhiteBand ERV-W Rubber Bellows range. Angular and more advanced configurations can be engineered to your exact requirements, however complex. Just let us know what you have in mind.
Without Restraints
(Untied)
WITHOUT RESTRAINTS

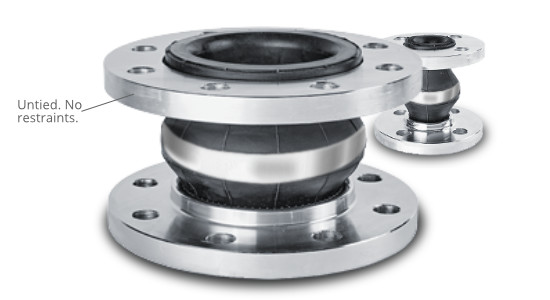

No movement restriction, pressure force acts on pipeThe bellows will exert a pressure force on the pipe (see FAQ) as the bellows tries to elongate which must be absorbed at the piping anchors. Any equipment connected to the bellows must have an adequate flange load rating.
Tie rods with outer nuts
(Tied)
TIE RODS WITH OUTER NUTS

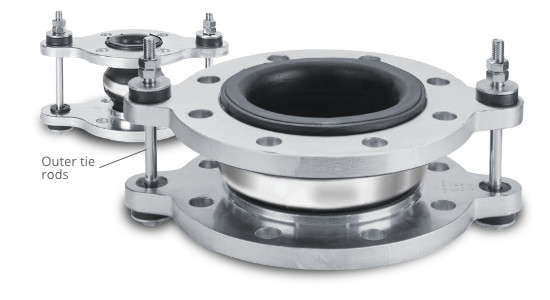

No axial extension, pressure force restrainedTie rods with outer nuts only restrict the elongation of the bellows under pressure and restrains the pressure force. Up to DN300 the tie bars lie elastically in noise-reducing rubber bushes of weatherproof rubber, from DN350 steel spherical washers are provided. The bellows can move laterally. Axial compression is also possible but only if the piping overcomes the pressure force.
Tie rods with inner and outer nuts
(Lateral only)
TIE RODS WITH INNER AND OUTER NUTS

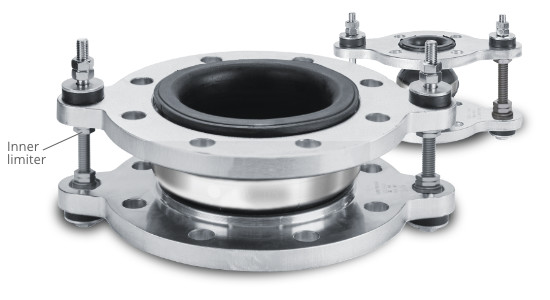

No axial extension or compression, pressure force restrainedTie rods with inner and outer nuts both restrict the elongation of the bellows under pressure (restrains the pressure force) and limits axial compression. Up to DN300 the tie bars lie elastically in noise-reducing rubber bushes of weatherproof rubber, from DN350 steel spherical washers are provided. The bellows can move laterally. Axial compression is also possible but only if the piping overcomes the pressure force and a gap is set between the inner nuts and the flange.
Hinges
(Angular only)
HINGES
Angular movement only, pressure force restrainedThe hinge restricts bellows movement to angular only. The pressure force is restrained by the hinge. No axial or lateral movement is possible. Two hinged bellows working together can form a very effective restrained lateral joint with low spring rate capable of very large movements.
Can't quite find the right bellow?
Try our Advanced Bellows Finder
Or call our expert team on +44 (0) 1384 881188. We'll be glad to help.
WhiteBand ERV-WComparison Chart
Is the WhiteBand ERV-W the best option for your application? Three potential alternatives to consider:
Abrasion resistant
Abrasion resistant?
Is this bellow suitable for slurries, sludge, water based emulsions, powders?
FDA food use FDA food use
Is this bellow approved to FDA for foods, oils and fats?
Rating in barg/°C Pressure & temperature
What is the required pressure rating (in barg) compared to temperature rating for this bellow?
Can't see what you want? Need help?
Call us. Or use Live Chat.
For instant advice. We can custom-design and engineer almost any expansion joint you need for delivery in the UK or worldwide. Call our expert team on +44 (0) 1384 881188 Or email us sales@flexej.co.uk
Frequently Asked Questions
A. Yes. FlexEJ holds a large stock of the most popular sizes and types of Elaflex rubber bellows as well as our HVAC value bellows range. We also hold stock of the most popular metal bellows for HVAC. Many of these items are available on 24hr delivery from our online web shop. We can also manufacture to order. For sales assistance please contact us or use our Live Chat facility.
A. Our Flange Finder contains details for many common flanges. Typically, to be able to make the identification you need to know the bore size or outside diameter and number of bolts. For technical assistance contact us or use our Live Chat facility.
A. Please refer to our guidelines for installation, anchoring & guides. They are available in the Downloads section of this website: Elaflex Rubber Bellows Installation Instructions and FlexEJ Metal Bellows Installation Instructions. For technical assistance please contact us or use our Live Chat facility.
A. Yes, our Elaflex ERV-R and ERP rubber bellows have WRAS, DVGW and ACS approval for drinking water. The Safetech manufactured to order rubber bellows can be supplied with WRAS approved EPDM linings. Our MRCA copper ended metal expansion joints also have WRAS approval. For technical assistance please contact us or use the LIVE CHAT link on this page.
